Diamond vs Carbide Burs: Which to Use for Every Procedure

The short answer: diamonds abrade, carbides shear. Reach for a diamond when you're removing enamel, ceramic, or zirconia, or when you need a margin the lab can read. Reach for a carbide when you're in dentin, cutting metal, or finishing composite. Most restorative appointments use both, and the ones that go wrong usually used one where the other belonged.

That's the whole answer. The rest of this is where it actually matters chairside.

The mechanical difference

	Diamond	Carbide
Cutting action	Abrasion — bonded grit grinds material away	Shearing — defined blades cut chips
Surface left behind	Rougher, micro-retentive	Smoother, cleaner
Tactile feedback	Low — you feel a slurry	High — you feel the cut
Best on	Enamel, porcelain, zirconia, composite bulk	Dentin, amalgam, metal, composite finishing
Heat generation	Higher — grinding creates friction	Lower — chips carry heat away
Chatter	Minimal	Possible if blades catch
Fails by	Grit wearing off and rounding	Blades dulling and burnishing

The tactile feedback line is the one most worth internalising. A diamond turns tooth structure into slurry, which is efficient but means your fingers stop telling you where you are. A carbide transmits what it's cutting. That's why caries excavation near the pulp is a carbide job even though a diamond would technically get there faster.

Which bur, by procedure

Style numbers below are FG shank. If a code is unfamiliar, our bur shape and number chart decodes all of them.

Procedure	Use	Why
Crown prep, axial reduction	Diamond TR-12 / TR-13	Enamel is a grinding job, and the rounded tip leaves no sharp internal line angle
Crown prep, shoulder margin	Diamond TF-12 / TF-13	Flat tip cuts a defined shoulder for all-ceramic seating
Crown prep, chamfer margin	Diamond CP-11 / CP-12	Ogival tip gives an even margin depth the lab can read on the die
Class I access	Carbide 330 or 245	Conservative cavity form with tactile control in dentin

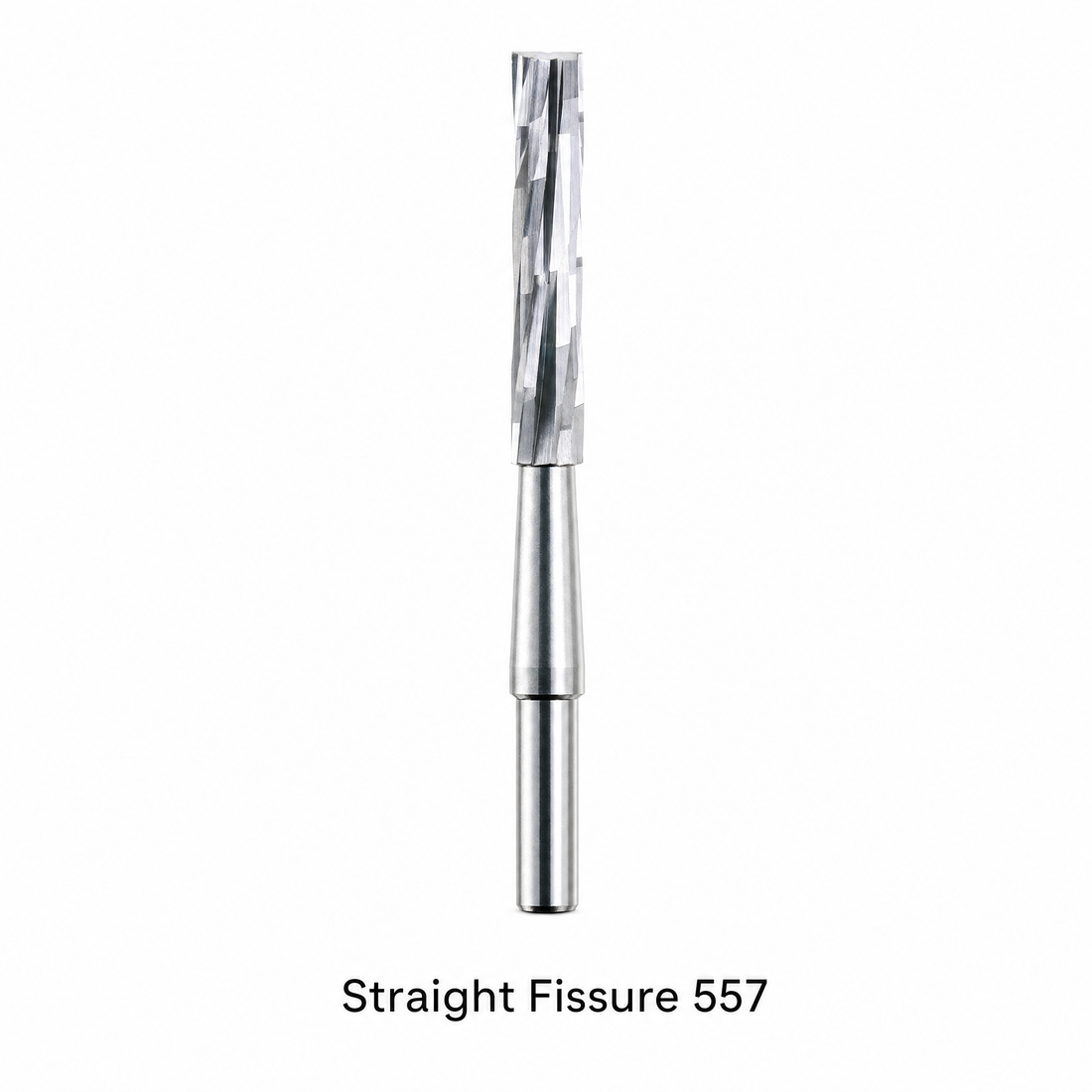

Class II box	Carbide 1158 or 557	Dome fissure for a rounded floor, straight fissure for a flat one
Caries excavation	Carbide 4 or 6	You need to feel the change from carious to sound dentin
Sectioning a PFM crown	Carbide 557, then diamond	Carbide cuts the metal coping; diamond takes the porcelain
Sectioning zirconia	Diamond, coarse or black grit	Zirconia will destroy a carbide's blades in seconds
Crown sectioning, general	Diamond SF-12 / SF-13	Parallel walls, controlled depth, no wandering
Veneer prep	Diamond FO-32 flame	Narrow profile reaches interproximal margins
Composite finishing	Carbide 7104 / 7404 / 7901	12-blade shears composite smooth instead of scratching it
Amalgam removal	Carbide 557 or 8	Blades cut metal; diamond grit clogs and glazes
Third molar sectioning	Carbide Zekrya 151	28 mm shank plus aggressive blades through dentin
Endodontic access flaring	Carbide Endo-Z 152	Safe-ended — flares walls without gouging the pulpal floor
Bone removal	Carbide surgical round	Clean shearing cut; diamond grit loads with bone and soft tissue

Three places the choice genuinely matters

Cutting metal

This is the least forgiving one. Diamond grit does not cut metal — it loads up, glazes over, and stops. Put a diamond on an amalgam or a metal coping and you'll burn through the bur and the appointment. Metal is a carbide job, every time.

Cutting zirconia

The reverse. Zirconia is harder than tungsten carbide, so a carbide's blades round over almost immediately. Zirconia needs a coarse or super-coarse diamond, and ideally one built for it — with plenty of water, because zirconia generates real heat.

Finishing composite

A fine diamond leaves a micro-rough surface. On a prep that's an advantage, since it's retentive. On a finished restoration it's a liability: rough margins pick up stain, hold plaque, and the patient finds them with their tongue. A multi-blade carbide shears composite to something close to polished straight off the bur. If restorations keep coming back stained at the margin, this is usually why.

Where it matters less than people claim

For routine axial reduction in enamel, either will get you there and the prep will be fine. The same goes for most bulk dentin removal away from the pulp. Plenty of ink gets spilled on marginal differences that don't change the outcome of an ordinary crown prep.

What does change the outcome, consistently, is whether the bur is still sharp. A dull diamond in the right shape produces a worse prep than a sharp carbide in the wrong one.

Heat and coolant

Diamonds run hotter, because grinding generates friction across the whole contact surface while carbide chips carry heat out with them. That doesn't make diamonds dangerous, it makes water non-negotiable at high speed. The working rule: any high-speed cutting near the pulp gets water, and any procedure running more than a few seconds gets water regardless of bur type. Brief dry use at low speed in an RA handpiece — caries excavation, composite trimming — is where dentists reasonably go without.

Cost per case, honestly

Carbides generally survive more sterilization cycles than diamonds, because a blade that stays sharp stays sharp while bonded grit wears continuously from first use. That makes carbides look cheaper per case in isolation.

It's the wrong comparison, though, because they don't do the same work. The real cost question isn't diamond versus carbide, it's how long you keep either one past the point it stopped cutting. A bur used four cases too long costs you chair time on every one of those cases, and chair time is worth more than any bur in the drawer.

Common questions

Can you use a diamond bur on composite?

For bulk removal, yes. For finishing, no — use a 12-blade or higher carbide finishing bur, which shears composite smooth rather than leaving the micro-rough surface a diamond produces.

Can you use a carbide bur on zirconia?

Not effectively. Zirconia exceeds tungsten carbide in hardness and will round the blades over almost immediately. Use a coarse or super-coarse diamond with generous water.

Which lasts longer, diamond or carbide?

Carbides typically last more cycles, since blades hold their geometry while diamond grit wears from the first use. Both fail gradually rather than suddenly, which is why they usually get used well past their useful life.

Do diamond burs cut faster than carbide?

Through enamel and ceramic, yes. Through dentin, a sharp carbide is often faster and gives you far better tactile feedback about what you're cutting.

Which bur is better for crown preparation?

Diamond, for the enamel reduction and the margin. Carbide comes in when a metal coping needs sectioning during removal of an existing crown.

How do you know when a bur is done?

If you're pushing harder than you did on the first case in the pack, it's done. Burs rarely fail outright — they drift, and you compensate without deciding to.

The practical answer

Stock both, and stop treating either as the expensive option. The dentists who prep well aren't the ones who picked a side — they're the ones who reach for a fresh bur without doing arithmetic first.
