Cutting Zirconia: Adjustment, Sectioning, and Crown Removal

Zirconia is the only restorative material that punishes you for using the right instrument the wrong way.

Everything else in the mouth gives you room. Push a diamond too hard on enamel and you get a rougher prep. Push a diamond too hard on zirconia and you can damage the restoration in a way that does not show up for months, then shows up as a fracture you get blamed for.

I run Taft Dental Supply. Zirconia is the single most common thing dentists complain to us about when they call about burs, and the complaint is almost always the same one: it ate three instruments and the case still ran long. Some of that is unavoidable. A lot of it is a grit selection problem, and the rest is a heat problem.

Here is the whole picture: why the material behaves the way it does, the two completely different jobs you do on it, and what to actually have on the tray.

Two jobs, opposite instruments

This is the part that trips people up, so it goes first.

Adjusting zirconia means touching an intact restoration you intend to keep. Occlusal reduction, a contact that is too tight, a high spot at seat. The material has to survive, which means the goal is minimum damage and the instrument is fine or extra fine.

Sectioning zirconia means destroying a restoration you have already written off. The crown is coming off and it is not going back on. The goal is speed and the instrument is super coarse.

Same material, opposite ends of the grit ladder. Reaching for the sectioning bur to adjust a contact is how a brand new crown gets compromised on the day it seats, and reaching for a fine diamond to section is how you spend twenty minutes on a removal.

Why zirconia eats burs

Two material properties explain almost everything about how zirconia behaves in the handpiece.

It is harder than your carbide. Tungsten carbide blades shear material softer than they are. Zirconia is not. Put a carbide against it and the blade edges round over in seconds while the crown sits there essentially untouched. What you get is heat, vibration, and a ruined instrument, with no meaningful material removal to show for it. This is not a preference or a technique issue. Carbide does not cut zirconia, full stop.

Diamond abrasion is the only practical chairside method for cutting or adjusting it.

It does not conduct heat away. Zirconia has low thermal conductivity, which is part of what makes it a good restorative material and exactly what makes it a difficult one to cut. Enamel and metal move heat out of the contact zone. Zirconia holds it there. So the friction you generate concentrates at the point of contact instead of dissipating, and the temperatures involved are far higher than most clinicians assume.

Combine those two and you get the instrument wear everybody complains about. You are abrading an extremely hard material with a diamond that is simultaneously being heat-stressed, and the bonded grit does not survive it for long.

The heat problem is really a strength problem

Here is the part that matters clinically, and it is why dry-cutting zirconia is not a shortcut, it is damage.

Zirconia's strength comes from a metastable crystal structure. Localized heat and mechanical stress can trigger a tetragonal-to-monoclinic phase transformation in that structure. The transformed crystals expand by roughly three to five percent, and that volume change produces microcracking inside the material.

You cannot see it. The crown comes out of the appointment looking fine and seats fine. The failure arrives weeks or months later as a fracture that reads like a material defect or a bad lab, and nobody traces it back to the adjustment.

Which gives you three non-negotiables:

• Never dry cut zirconia. Continuous, high-volume water spray, every time, on every contact.
• Do not dwell. Light, intermittent, sweeping strokes. Holding the bur in one spot concentrates exactly the heat you are trying to avoid.
• Back off the speed for adjustment. Dedicated zirconia burs are often run around 150,000 rpm rather than wide open. You are abrading gently, not excavating.

Chairside adjustment: fine grit, then polish

For anything where the restoration stays in the mouth:

Grit. Fine, the red band, or extra fine, the yellow band. A coarse diamond removes material faster and leaves subsurface damage the patient's occlusion will eventually find. Speed here costs you durability, and the trade is a bad one because the time saved is measured in seconds.

Technique. Light pressure, sweeping motion, water running. Let the diamond abrade rather than forcing it.

Then polish. This step is not optional. Adjustment leaves microscopic scratches across the surface, and those scratches are stress concentrators. A multi-step polishing system made for high-strength ceramics restores the surface and, with it, the material's strength. An adjusted-and-unpolished zirconia surface is a weaker restoration than the one that came out of the box.

Polishing is also the better answer than re-glazing in most cases, since a glaze layer sits on top of the damage rather than removing it.

Sectioning for crown removal

Different job, different rules. Now you want the material gone.

Assess first. Radiograph and clinical exam before you start. What you are looking for is the cement type, the amount of remaining tooth structure, and whether there is a post or core underneath. Adhesively cemented zirconia almost always requires sectioning, while conventionally luted crowns on a retentive prep occasionally come off with a crown remover and save you the whole procedure. Try the easy option first.

Know what you are actually cutting. Monolithic zirconia is zirconia all the way through. A porcelain-fused-to-zirconia restoration has a feldspathic layer over a zirconia substructure, and those two layers behave differently under the bur. Clinicians regularly section the zirconia successfully and then find the crown still intact because the overlying porcelain is holding it together. Plan for both layers.

The sequence.

1. Start buccal. It gives you the most direct access and the best sightline, and it keeps you away from the adjacent contacts.
2. Cut a vertical groove from occlusal toward the margin with a super coarse diamond, water running continuously.
3. Take the groove all the way through to the cement lumen. Partial depth is the most common reason a crown will not release, and the instinct to stop short to protect the prep is what causes it. You want to feel the change when you are through.
4. Switch to an extended-length instrument if you cannot reach the gingival extent of the groove without angling the handpiece.
5. Spread the groove with a crown spreader or seat a spoon excavator into the cut and twist. The crown should release along the section.
6. If it does not, the groove is not deep enough or there is a second retentive area. Deepen before you apply more force.

On carbide during removal. Carbide still has a place here, just not against the zirconia itself. A transmetal-type carbide is the right instrument for cutting through a metal substructure or a metal post, and it will handle those far better than a diamond, which glazes over on metal. Match the instrument to the layer you are actually in.

What to expect from your instruments

Plan on burning them. This is the honest part.

An in-vitro study published in 2024 compared a zirconia-specific diamond against super-coarse and medium-coarse diamonds for sectioning monolithic zirconia and lithium disilicate crowns, tracking cutting efficiency across successive sectioning cycles with SEM analysis between each one. The zirconia-specific instrument cut fastest in the early cycles, and efficiency varied meaningfully by both bur type and crown material.

The practical translation is the thing dentists already know from experience: a diamond used to section zirconia is often close to finished after a single crown, and sometimes before it. Clinicians reporting that a removal took two or three instruments are usually not describing a defective product.

So budget for it. Have more than one on the tray before you start, because the failure mode is not the bur breaking, it is the bur going dull halfway through the groove and you pressing harder to finish, which generates exactly the heat you were trying to control. The wear signals are the same ones that apply everywhere else, and we covered them in how long dental burs last.

What to have on the tray

For adjustment: a fine and an extra-fine diamond in a football and a flame, plus a ceramic polishing sequence. That is the whole kit, and the polishers matter as much as the burs.

For sectioning: a super coarse or zirconia-specific diamond, a straight cylinder or tapered shape for the groove, a transmetal carbide if you work on metal substructures, an extended-length option for gingival reach, and a crown spreader.

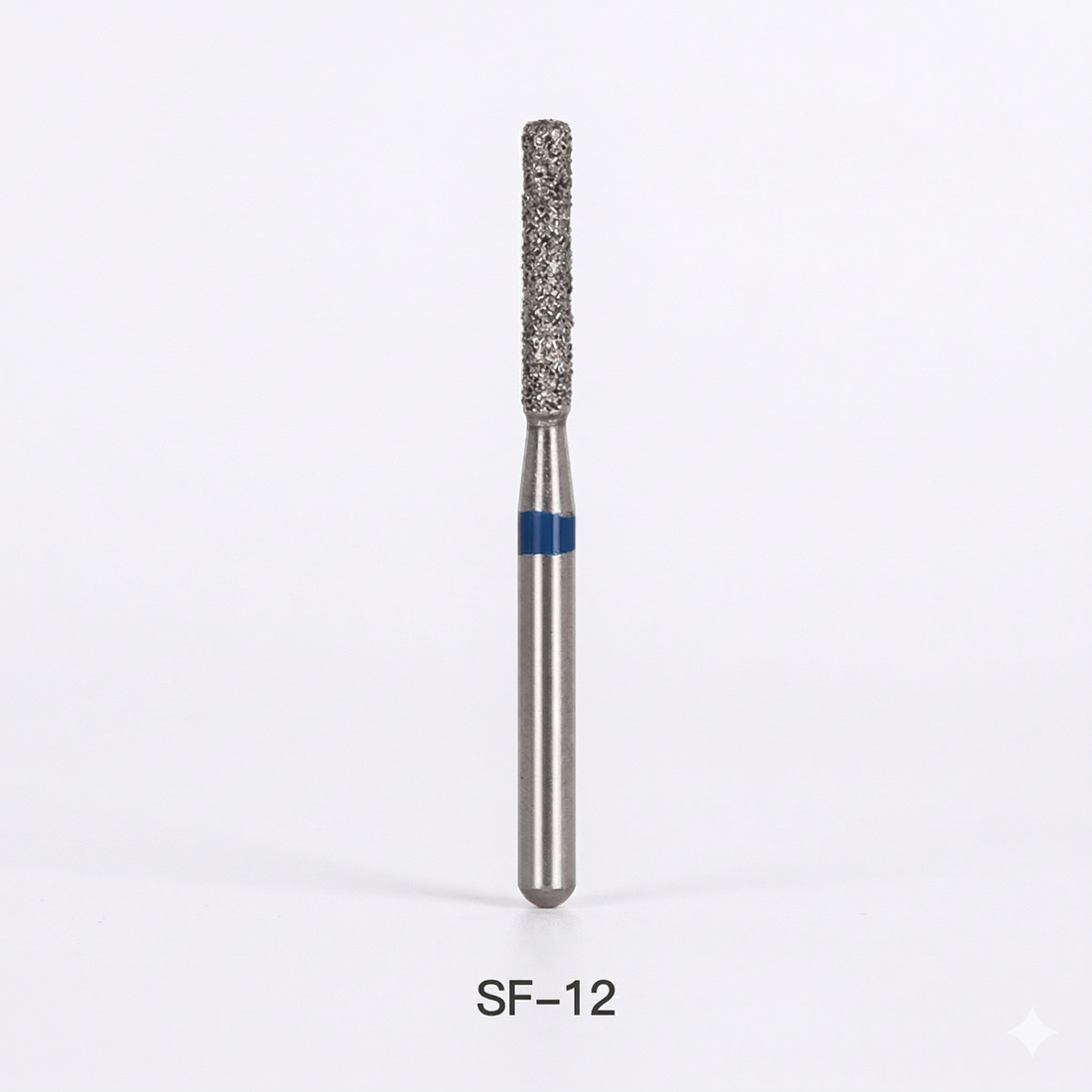

From our catalog, so you know what fits where: the Zirconia Cutting Kit is built for the sectioning job, black grit dual-layer bonded, at $39.95. For the groove itself the straight cylinder in coarse gives you parallel walls and a defined floor, five per pack at $19.95. For adjustment, the football and flame both come in fine, red band. When you cannot reach the gingival extent, the surgical and endodontic carbides run extended 25 mm and 28 mm FG shanks.

Everything ships from Cincinnati within 24 hours, there are no account minimums, and the 60-day guarantee covers opened packs, which on a zirconia bur is the only test that means anything. Browse the catalog or call 513-580-8414.

One last thing, and it is worth raising with whoever does your prosthetics. Cement selection at seat determines how difficult removal will be years later. Adhesive cementation buys retention and seal at the cost of retrievability. That is frequently the right call, but it should be a decision rather than a default, because the person sectioning that crown in 2034 may well be you.

Common questions

What bur do you use to cut zirconia?

A diamond, always. Tungsten carbide is softer than zirconia and its blades round over almost immediately without removing meaningful material. For sectioning a crown you want super coarse grit or a zirconia-specific diamond. For adjusting a restoration that stays in the mouth, you want fine or extra fine grit, followed by a ceramic polishing sequence.

Can you cut zirconia without water?

No. Zirconia has low thermal conductivity, so friction heat concentrates at the contact point instead of dissipating. That heat can trigger a tetragonal-to-monoclinic phase transformation in the crystal structure, which expands by roughly three to five percent and produces microcracks. The damage is invisible chairside and can lead to fracture weeks or months later. Continuous high-volume water spray is required for every contact.

How do you section a zirconia crown?

Start on the buccal surface with a super coarse diamond and continuous water, cutting a vertical groove from occlusal toward the margin. Take the groove fully through to the cement lumen, since partial depth is the most common reason a crown will not release. Then spread the groove with a crown spreader or seat a spoon excavator in the cut and twist. If it does not release, deepen the groove rather than applying more force.

Why do zirconia crowns destroy dental burs?

Zirconia is extremely hard and holds heat at the contact point rather than conducting it away, so the diamond is abrading a very hard material while being heat-stressed at the same time. Bonded grit does not survive that combination for long. It is common for a diamond to be near the end of its useful life after sectioning a single crown, which is why having more than one on the tray is better planning than pushing a dulled instrument through the rest of the case.

Do you have to polish zirconia after adjusting it?

Yes. Adjustment leaves microscopic surface scratches that act as stress concentrators and weaken the restoration. A multi-step polishing system formulated for high-strength ceramics removes that damage and restores surface integrity. Polishing is generally preferable to re-glazing, since a glaze layer covers the damage rather than eliminating it.
