Chamfer vs Shoulder Margin: Which Bur Cuts Which

Most margin problems are not decision problems. They are bur problems.

You decided on a chamfer. The lab got a chamfer on the mesial, something close to a feather edge on the distal, and a lip of unsupported enamel on the buccal where the bur went a little too deep. Same prep, three margins.

Choosing between chamfer and shoulder is the easy part, because the restoration material mostly makes that call for you. Cutting the margin you chose, at the depth you chose, all the way around the tooth, is where the bur earns its keep.

Here is how the two margins differ, which one each material wants, which bur shape cuts which, and the errors that show up on the die.

Chamfer vs shoulder: the actual difference

A chamfer is a curved finish line. The axial wall rolls into the margin through a concave arc, like the inside of a quarter circle. It removes less structure, gives the lab a defined edge, and has no sharp internal angle to concentrate stress.

A shoulder is a flat ledge. The gingival floor meets the axial wall at roughly 90 degrees and gives the restoration a broad, flat seat. That bulk at the margin is why it has been the traditional choice for brittle ceramics and porcelain butt margins. Scanners also tend to read a shoulder cleanly, which is one reason some labs favor it for digital workflows.

Two variations sit in between, and they are where most modern preps actually land.

• Heavy chamfer. A deeper chamfer, around 1.0 mm or more, that gives nearly the bulk of a shoulder while keeping the curved internal form.
• Rounded shoulder, also called a modified or radial shoulder. A shoulder with the internal line angle rounded off instead of left sharp. Current ceramic guidance generally favors this over a crisp 90 degree internal corner, because sharp internal angles concentrate stress in the restoration.

Which margin each material wants

These are typical ranges drawn from lab and manufacturer guidance. They vary by source, and your lab's prescription guidelines for the specific material should win every time.

Restoration	Common margin	Typical depth
Full cast metal	Light chamfer	~0.5 mm
PFM, metal margin areas (lingual, proximal)	Light chamfer	~0.5 mm
PFM, porcelain butt margin (facial)	Rounded shoulder or heavy chamfer	1.0 to 1.2 mm
Monolithic zirconia	Chamfer	0.5 mm minimum, many labs prefer closer to 1.0 mm
Lithium disilicate	Rounded shoulder or heavy chamfer	~1.0 mm
Layered ceramic	Rounded shoulder	1.0 to 1.2 mm

Notice the pattern. Metal tolerates a thin edge, so it gets a light chamfer. Ceramics need bulk at the margin to resist fracture, so they get a heavy chamfer or a rounded shoulder. Zirconia sits in the middle because it is strong enough to go conservative, which is why you will see labs disagree about how deep to take it.

Which bur cuts a chamfer

Two shapes do this job.

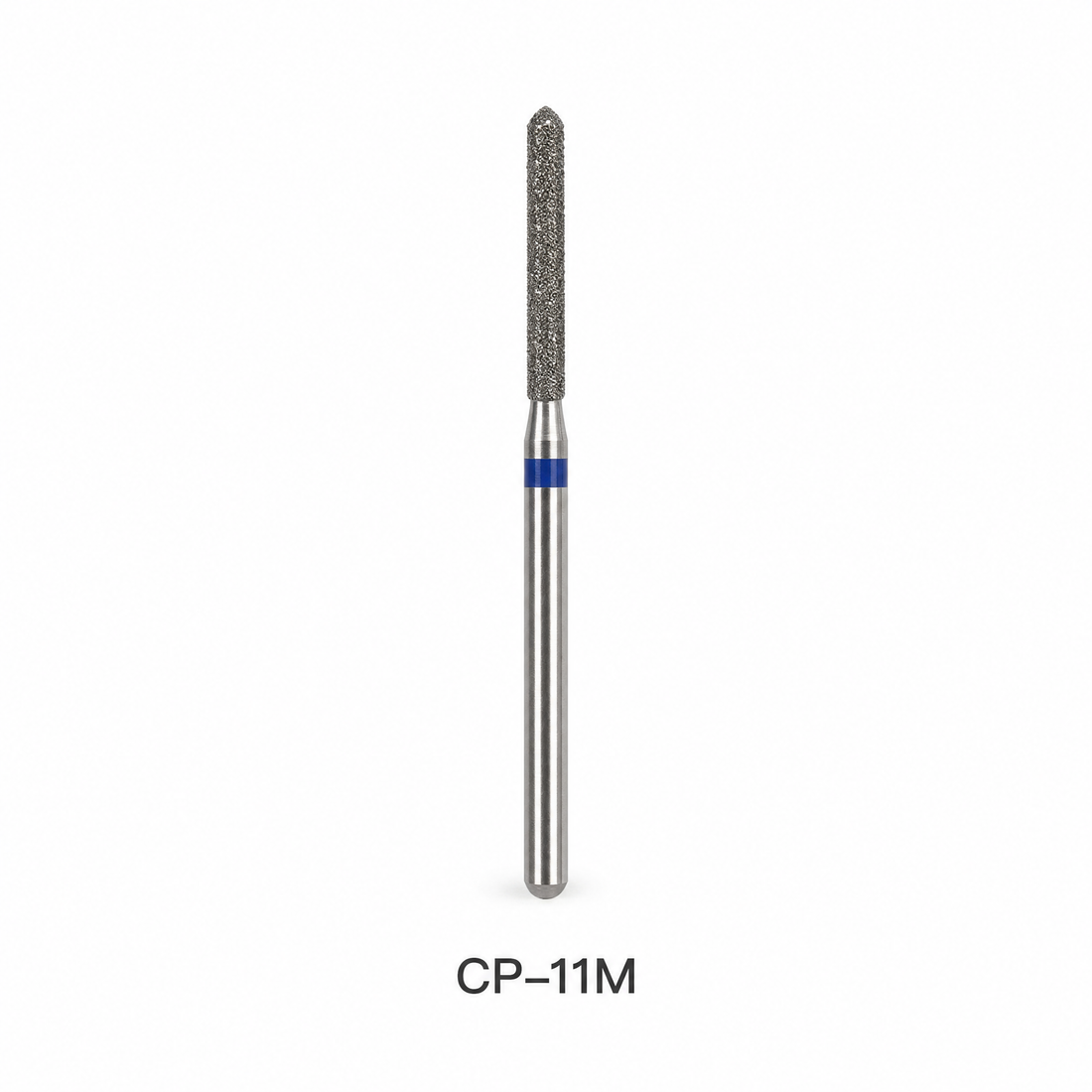

The chamfer bur, an ogival or bullet-shaped tip on a cylinder, is built for it. The curved tip lays down the chamfer profile in a single pass. Taft's chamfer diamonds come in 1.2 mm (CP-11) and 1.4 mm (CP-12) heads.

The round end taper cuts axial reduction and a rounded margin at the same time, which is why it is the workhorse of crown and bridge. Taft's round end tapers run from 1.4 mm (TR-11) up to 1.8 mm (TR-13).

The rule that matters for both: the deepest clean chamfer a round-tipped bur can cut is about half its diameter. A 1.8 mm head gives you roughly a 0.9 mm heavy chamfer when the tip is sunk to its midline. A 1.2 mm head lands in light chamfer territory, around 0.6 mm.

Go past half and the bur stops making a chamfer. It starts undercutting, and it leaves a thin lip of enamel hanging over the margin. That lip looks fine on the prep. It fractures off during try-in or cementation, and now your margin has a gap in it.

So pick the diameter for the depth you need, rather than pushing a smaller bur deeper to get there.

Which bur cuts a shoulder

The tapered fissure, a flat-end taper, is the shoulder bur. The flat tip cuts the gingival floor while the tapered side cuts the axial wall at the same time. Taft's tapered fissure diamonds come in TF-21, TF-12, and TF-13, in medium and coarse grit.

Two things make a shoulder better than a flat-end taper alone will give you.

Round the internal angle. A flat-end bur leaves a crisp internal line angle by design. If your lab or material guidelines call for a rounded shoulder, which most ceramic guidance now does, soften that corner with a round-ended instrument after the shoulder is established.

Take it to depth without touching the wall. Deepening a shoulder with the same bur that cut the axial wall tends to over-reduce the wall, and over-reducing the wall costs retention. An end cutting diamond carries diamond on the tip only. Its smooth sides ride the finished wall as a guide while the tip takes the floor down. It is the cleanest way to add depth to a shoulder after the fact.

The margin errors that come back from the lab

Every one of these is a bur handling issue more than a planning issue.

• Lipped chamfer. Bur sunk past half its diameter. Leaves unsupported enamel that breaks off. Fix it by choosing a bigger head, not going deeper with a smaller one.
• Inconsistent depth around the tooth. 1.0 mm on the buccal, 0.4 mm on the distal where access was harder. The lab has to design to the thinnest point, and the crown is only as strong as that point.
• Chamfer that fades into a feather edge. Usually on the proximal surfaces, where the bur angle changes. Keep the bur long axis parallel to the path of draw all the way around.
• Sharp internal angles on a shoulder. A stress point in a ceramic restoration. Round it.
• A margin left rough from a coarse bur. The margin is the one place you want a fine grit. Finish it with a red band diamond in the same shape. Our breakdown of diamond bur grit color codes covers the sequence.
• A worn bur that no longer cuts to its size. A diamond that has lost its bite gets pushed harder, and pressure is exactly what produces lips and gouges at the margin. If you are pressing to get the cut, retire it. The signals are in how long dental burs last.

What to stock

If your restorations span metal, zirconia, and lithium disilicate, a small set covers both margins.

1. A large round end taper (1.8 mm) for heavy chamfers and full axial reduction.
2. A chamfer bur (1.2 or 1.4 mm) for light chamfers on metal and conservative zirconia.
3. A tapered fissure for shoulders.
4. An end cutting diamond for taking a shoulder to depth.
5. Fine grit versions of your main chamfer shape for finishing the margin.

Or start with a kit built around the sequence. The Crown Prep Anterior (FG-101) and Crown Prep Molar (FG-102) kits put the reduction and margin shapes in one box, and which bur for each procedure maps the rest.

Taft diamonds are $19.95 for a 5-pack, dual-layer bonded, direct with no rep and no minimums, shipping from Cincinnati. Browse the full bur catalog or call 513-580-8414.

Common questions

What is the difference between a chamfer and a shoulder margin?

A chamfer is a curved finish line where the axial wall rolls into the margin through a concave arc. A shoulder is a flat ledge where the gingival floor meets the axial wall at roughly 90 degrees. Chamfers remove less tooth structure and avoid sharp internal angles; shoulders give ceramic restorations more bulk and a flat seat at the margin.

Which bur is used for a chamfer margin?

A chamfer bur with an ogival or bullet-shaped tip, or a round end taper diamond. The deepest clean chamfer a round-tipped bur can cut is about half its diameter, so a 1.8 mm bur produces roughly a 0.9 mm heavy chamfer and a 1.2 mm bur roughly a 0.6 mm light chamfer. Sinking the bur deeper than half its diameter leaves an unsupported enamel lip.

Which bur is used for a shoulder margin?

A flat end tapered fissure diamond cuts the shoulder floor and axial wall together. An end cutting diamond, with abrasive on the tip only, can deepen the shoulder without over-reducing the axial wall. Most ceramic guidelines call for rounding the internal line angle after the shoulder is cut.

Is a chamfer or shoulder better for zirconia crowns?

Monolithic zirconia is commonly prepared with a chamfer, since its strength allows a more conservative margin than other ceramics. Guidance ranges from a 0.5 mm minimum to a heavier chamfer around 1.0 mm, and some labs accept a rounded shoulder. Follow your lab's prescription guidelines for the specific zirconia being used.

What margin does lithium disilicate need?

Lithium disilicate is typically prepared with a rounded shoulder or heavy chamfer around 1.0 mm deep, with rounded internal line angles. Confirm the exact requirement against the manufacturer's preparation guidelines and your lab's prescription.
