Diamond Bur Grit Color Codes: What Each Band Means

Every diamond bur in your block tells you its grit before it touches a tooth. The colored ring on the neck is a code, and it means the same thing across every reputable manufacturer.

Most of us learned the chart in school. Fewer can name all six colors by year three.

And almost nobody talks about the part that matters chairside: the ring tells you what the bur was when it came out of the pack. It does not tell you what it is cutting like today.

Below is the full chart, how to read the grit inside an ISO number, the sequence that puts each grit where it earns its place, and the one problem the color system cannot catch for you.

The diamond bur color code chart

The band sits on the neck, between the shank and the working head. Colors run from black, the coarsest, to white, the finest. Particle sizes below are typical nominal values. Exact ranges shift a little from one manufacturer to the next.

Band	Grit	Typical particle size	ISO grit code	Where it earns its place
Black	Super coarse	~180 µm	544	Bulk removal, zirconia, sectioning crowns
Green	Coarse	~150 µm	534	Gross reduction, fast access
Blue (or no band)	Medium	~106 µm	524	Standard crown and cavity prep
Red	Fine	~46 µm	514	Margin refinement, smoothing axial walls
Yellow	Extra fine	~25 µm	504	Finishing enamel, composite, ceramic
White	Ultra fine	~15 µm	494	Final polish

Two things trip people up here.

Medium is often unbanded. Plenty of manufacturers leave the ring off their standard grit entirely. If you pull a diamond with no band, assume medium. Taft marks medium with a blue band so there is no guessing, but you will see both conventions in the same drawer if you buy from more than one source.

Carbide rings are a different language. The grit convention applies to diamonds. Some carbide makers use colored rings to signal trimming versus finishing, but that is not standardized, and two carbides with the same ring color can have completely different blade designs. On a carbide, read the number, not the color.

How to read the grit inside an ISO number

The full ISO number on the packaging is five groups of three digits. Take 806 314 110 524 012:

• 806 is the material. Diamond.
• 314 is the shank. Standard friction grip.
• 110 is the shape. Cylinder.
• 524 is the grit. Medium, the same thing the blue band tells you.
• 012 is the head diameter in tenths of a millimeter. 1.2 mm.

The fourth group is the one that matters for this post. 544 down through 494, each step of ten is one step finer. Once you know that, you can read grit off a box label, an invoice, or a catalog page with no color in sight, which is exactly when you need it most: ordering. For the shape half of the number, our FG shape and number chart covers it, and bur shanks explained handles the second group.

Holding a bur number you cannot place? Run it through our Bur Number Decoder instead of digging through charts.

Coarser is not faster. It is rougher.

A coarse diamond removes structure quickly because larger particles take bigger bites. The cost is the surface it leaves behind: deeper scratches, and more subsurface damage in enamel.

That matters most at the margin. A margin cut and left with a green band diamond is a rough line for the scanner or the impression material to read, and a rough line for the lab to find on the die. The crown seats to what the lab could see.

Finer grits cut slower but leave a surface you can actually trust. The mistake runs in the other direction too. Reaching for a red band to do gross reduction means more time on the handpiece, more pressure to compensate, and more heat.

Neither grit is better. Each one is right for one stage of the prep.

The grit sequence for a crown prep

The standard workflow steps down in grit while keeping the shape the same, so each bur cleans up the scratch pattern left by the one before it. For the full step-by-step on anteriors and molars, see crown prep bur sequence: anterior vs molar.

1. Gross reduction, green band. Occlusal reduction, axial walls, establishing the outline. A coarse round end taper is the classic choice. Which size to use is in our round end taper guide.
2. Standard prep, blue band. Most clinicians do the bulk of the work here and skip the coarse step on smaller preps. Medium gives you speed with control.
3. Margin refinement, red band. Same shape, fine grit, light pressure. This is where the margin becomes readable. A fine round end taper or a fine chamfer depending on your finish line. Not sure which finish line? See chamfer vs shoulder margins.
4. Finishing, yellow or white band, or a carbide. Extra fine diamonds or a 12-blade carbide finisher for the smoothest surface before impression or scan.

Zirconia is the exception. Cutting through an existing zirconia crown calls for black band, super coarse, ideally with a double-layer bond so the diamond survives the job. We covered that in detail in cutting zirconia.

If you want the full shape-by-procedure breakdown, which bur for each procedure walks through it step by step.

The band tells you what it was, not what it is

Here is the part the chart cannot help with.

A diamond bur wears by losing and rounding its particles. As that happens, a medium bur starts cutting like something finer. Not all at once. Gradually, a little less bite on every prep, until your blue band is doing the work of a red band and you are making up the difference with pressure.

We call this Bur Drift. Your hand compensates before your brain notices. The ring still says medium. The bur stopped being medium a while ago.

That has real consequences for the sequence above. A worn coarse bur takes longer on gross reduction and runs hotter doing it. A worn fine bur stops refining the margin and starts polishing a rough one. The grit system only works if the grit on the band is the grit on the head.

The signals to watch, and how long a diamond realistically lasts, are in how long do dental burs last and signs your dental bur is dull. The short version: if you are pressing harder to get the same cut, the bur is done. Retire it, regardless of what color it is.

What to do with this

Open your bur block and sort it by band. Most practices find one of three things.

• A drawer that is nearly all medium, with no fine grit for margins. That is the most common gap, and the easiest fix.
• Coarse burs being used for everything because they feel faster. Check your margins on the next few preps.
• Unbanded and blue-banded mediums mixed together from different suppliers. Same grit, just different labeling. Worth knowing so nobody thinks they are two different things.

Then stock by stage, not by habit. Green for reduction on the shapes you use most, blue as the backbone, and red in at least your round end taper and chamfer so every crown prep has a refining step available.

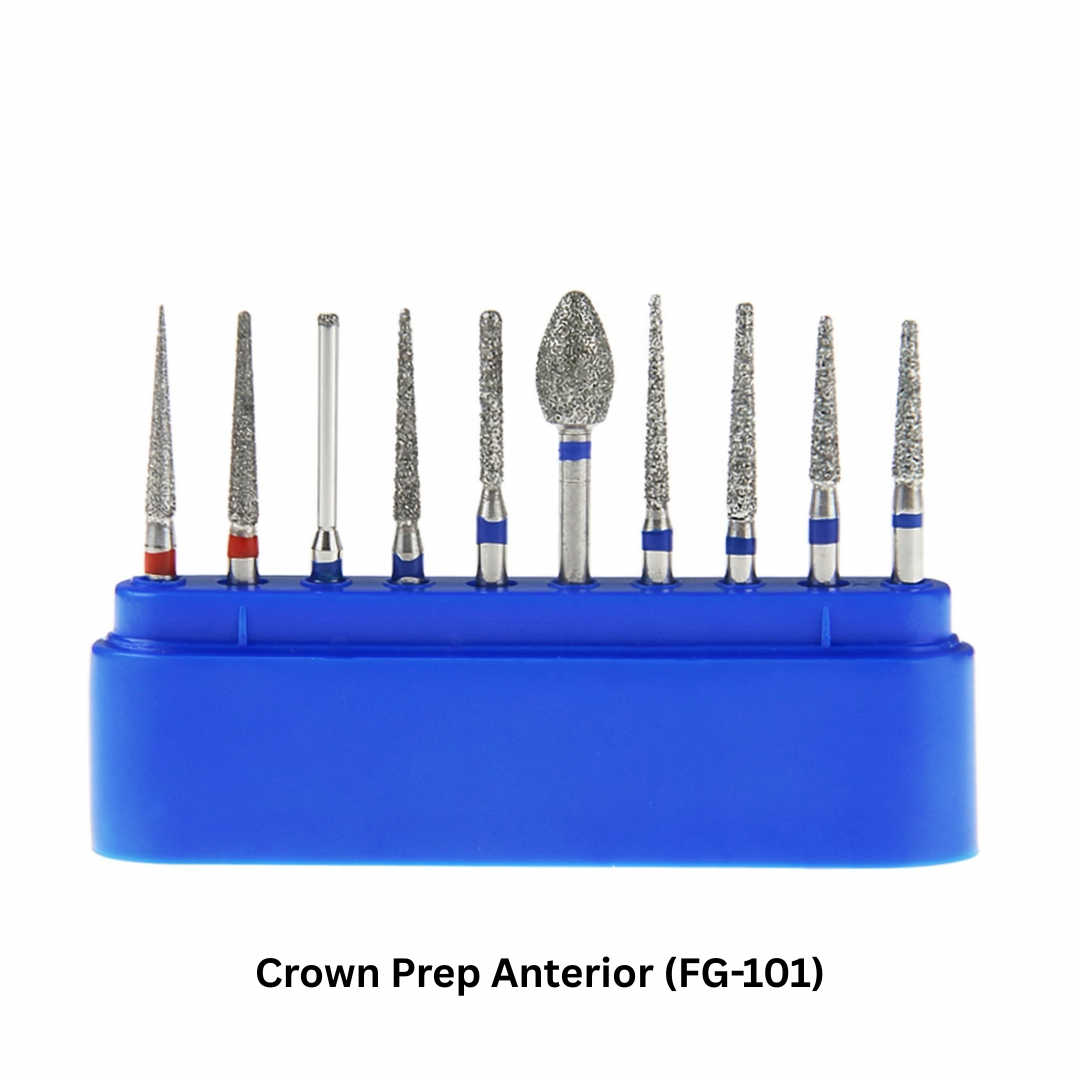

Taft diamonds are $19.95 for a 5-pack in green, blue, and red bands across round, round end taper, chamfer, tapered fissure, flame, football, needle, and more, with black band in the zirconia kit. Carbides run $29.95 for a 10-pack. Direct pricing with no rep and no minimums, shipping from Cincinnati. Browse the full bur catalog or call 513-580-8414.

Common questions

What do the colors on diamond burs mean?

The colored band indicates grit, meaning the size of the diamond particles. Black is super coarse (about 180 microns), green is coarse (about 150), blue or no band is medium (about 106), red is fine (about 46), yellow is extra fine (about 25), and white is ultra fine (about 15). Coarser grits cut faster; finer grits leave a smoother surface.

What color is a medium grit diamond bur?

Blue, or no band at all. Many manufacturers leave the ring off their standard medium grit, so an unbanded diamond should be assumed medium. In the ISO numbering system, medium grit is code 524.

Which diamond bur grit should I use for crown margins?

Fine grit, red band, is the standard choice for refining a crown margin. Use it in the same shape you used for reduction, with light pressure, so it removes the scratch pattern left by the coarser bur. Some clinicians follow with an extra fine diamond or a carbide finishing bur for an even smoother surface before impression or scanning.

Do carbide burs use the same color code?

No. The standardized color system applies to diamond grit. Some carbide manufacturers use colored rings to indicate trimming or finishing, but those colors are not standardized between brands. Identify carbide burs by their number and blade count rather than ring color.

What does 524 mean on a dental bur?

524 is the ISO grit code for medium. It appears as the fourth three-digit group in a diamond bur's full ISO number. The codes run 544 (super coarse), 534 (coarse), 524 (medium), 514 (fine), 504 (extra fine), and 494 (ultra fine).
