Round End Taper Burs for Crown Prep: Sizes, Uses, and Technique
If you could keep only one diamond in the block, most crown and bridge clinicians would keep this one.
The round end taper cuts the axial wall and the margin in the same pass. The taper builds your draw. The rounded tip lays down a chamfer with no sharp internal line angle. Occlusal, axial, margin: one shape can take a crown prep most of the way on its own.
That is also why it is the bur most operatories burn through fastest, and why small handling errors with it show up on almost every crown you send to the lab.
Here is how to pick the right size, the step-by-step prep sequence, and the handful of mistakes that turn a good shape into a remake.
What a round end taper actually does
The head is a tapered cylinder that ends in a rounded tip. Catalogs often list the shape under the 856 number. Each part of that geometry has a job.
- The taper sets your axial wall. Hold the shank parallel to your intended path of draw and the wall takes on the bur's own taper. You are not guessing at convergence by eye.
- The rounded tip cuts a chamfer margin as the side cuts the wall. No separate margin bur, no sharp internal angle at the gingival floor.
- The length reaches the full height of the axial wall in one stroke, so the wall comes out as one plane instead of a series of steps.
Compare that with a tapered fissure, which does the same axial job but leaves a flat shoulder, or a chamfer bur, which is built for the margin first. Our chamfer vs shoulder guide covers when each margin is the right call.
Round end taper sizes: which one for which tooth
Diameter decides two things: how wide the prep gets, and how deep a chamfer the tip can cut. As a rule of thumb, the deepest clean chamfer a round tip can cut is about half the bur's diameter. Go deeper and you start leaving a lip of unsupported enamel.
| Taft size | Head (max diameter × length) | Approx. chamfer depth | Typical use | Grits |
|---|---|---|---|---|
| TR-11 | 1.4 mm × 10.0 mm | ~0.7 mm | Anteriors, narrow teeth, conservative preps | Medium |
| TR-25 | 1.4 mm × 8.0 mm | ~0.7 mm | Short clinical crowns, tight access | Medium |
| TR-12 | 1.6 mm × 10.0 mm | ~0.8 mm | Premolars, general crown prep | Medium |

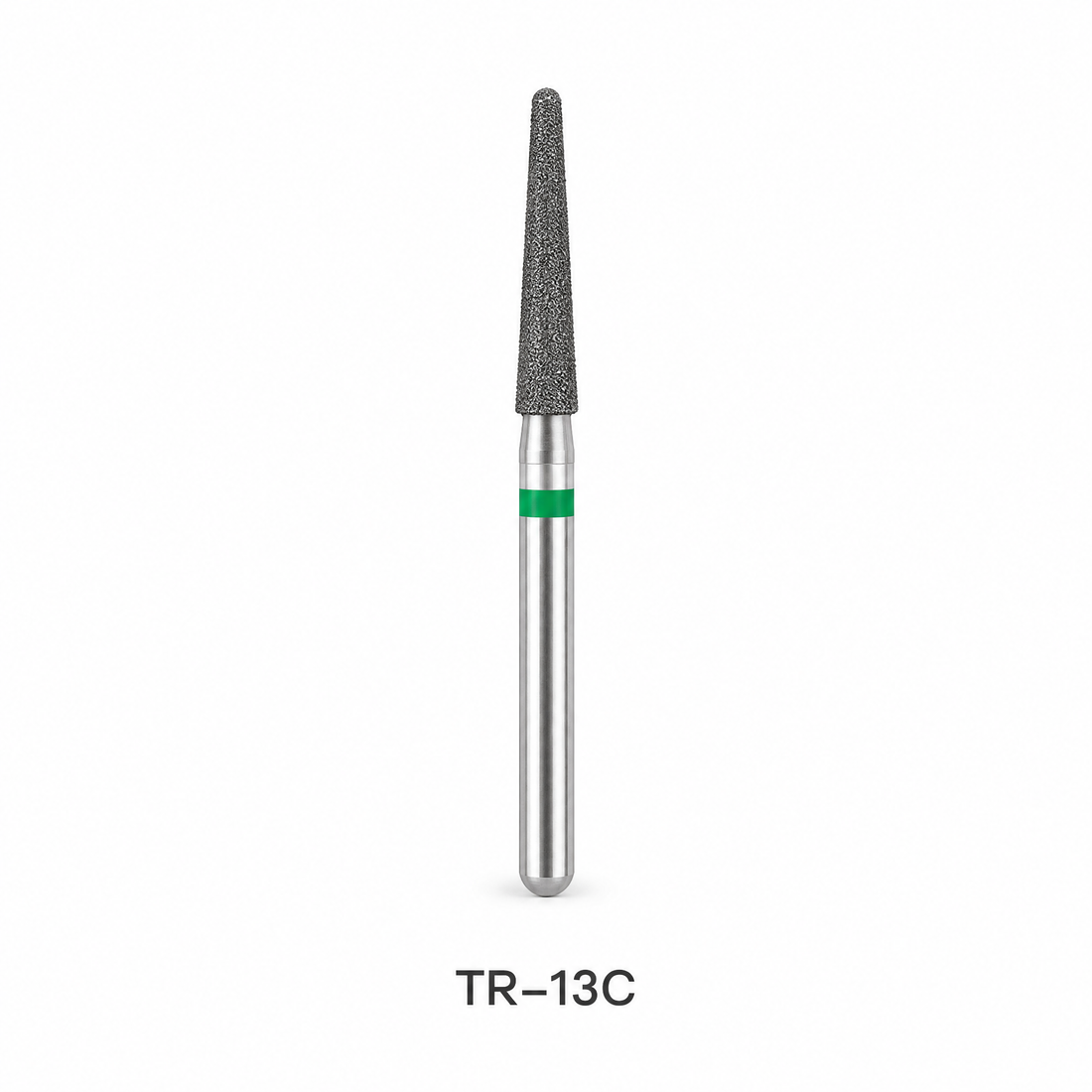

| TR-13 | 1.8 mm × 9.0 mm | ~0.9 mm | Molars, heavy chamfer for ceramics | Coarse, medium, fine |
A practical pairing: TR-12 or TR-11 for anteriors and premolars, TR-13 for molars and any ceramic that wants a heavier chamfer. TR-25's shorter head gives you more control on short clinical crowns, where a 10 mm head would be cutting air above the occlusal table.
Pick the diameter for the margin depth you need. Do not push a smaller bur deeper to get there.
The crown prep sequence, step by step
A sequence built around a single round end taper, with a finishing pass at the end. Adjust depths to your material and your lab's guidelines.
1. Depth orientation grooves
Before you remove bulk, cut guide grooves on the facial and lingual surfaces. Sink the tip to half its diameter and you know exactly how deep that groove is: roughly 0.9 mm with a TR-13. Now the rest of the reduction is just connecting grooves, and you are not estimating depth by feel.
2. Occlusal reduction
Reduce the occlusal table to follow the cusp inclines, not flatten them. Many clinicians do this with the round end taper on its side. A football diamond follows cusp and fossa anatomy more naturally if you prefer a dedicated shape.
3. Proximal break-through
This is where adjacent teeth get nicked. Open the contact with a narrow instrument first, such as a needle diamond, leaving a thin sliver of enamel between the bur and the neighbor. Then bring the round end taper in once there is room.
4. Axial reduction and margin
Keep the shank parallel to the path of draw and move around the tooth in one continuous direction. The side cuts the wall, the tip cuts the chamfer. Keep the tip at the same depth all the way around, especially on the proximals, where the angle of approach changes and margins tend to thin out.
5. Refine with fine grit
Switch to the same shape in fine grit (red band) and go around again with light pressure. It removes the scratch pattern the coarser bur left and gives the scanner or impression a clean, readable finish line. Our guide to diamond bur grit color codes covers the full grit sequence.
The round end taper mistakes that reach the lab
Every one of these is a handling issue, and every one shows up on the die.
- Tilting the bur. Tip the shank outward and you over-taper the wall and lose retention. Tip it inward and you cut an undercut. Check parallelism from the facial and from the proximal, not just straight on.
- Sinking past half the diameter. The tip stops cutting a chamfer and starts undercutting, leaving a lip of enamel that fractures at try-in.
- Letting the tip ride up on the proximals. The margin that was 0.9 mm on the facial becomes 0.4 mm on the distal. The lab designs to the thinnest point.
- Steps in the axial wall. Short, choppy strokes leave ledges. Long strokes using the full head length give one plane.
- Skipping the refinement pass. A margin left from a coarse diamond reads rough on a scan and rough on the die.
- Running a worn bur. This is the shape that wears fastest because it does the most work. A worn one cuts slower, gets pushed harder, and pressure is what produces lips and gouges. See signs your dental bur is dull.
Keep more of them than you think you need
Because the round end taper does most of the work on most crowns, it is also the bur most likely to be running past its useful life. The fix is not a longer-lasting bur, although dual-layer bonding helps. It is having enough in the drawer that grabbing a fresh one is automatic.
- Stock at least two diameters: one for anteriors and premolars, one for molars.
- Keep a fine-grit version of your main size for margin refinement.
- Give it its own reorder rhythm. Subscribe & Save on the product page puts it on a schedule you choose.
Taft round end taper diamonds come in TR-11, TR-12, TR-13, and TR-25, with TR-13 in coarse (green), medium (blue), and fine (red). Every one is dual-layer bonded with an FG shank, $19.95 for a 5-pack, direct with no rep and no minimums. Prefer it sequenced for you? The Crown Prep Anterior (FG-101) and Crown Prep Molar (FG-102) kits are built around the crown prep sequence. Questions: 513-580-8414.
Common questions
What is a round end taper bur used for?
A round end taper diamond is the standard shape for crown preparation. The tapered sides cut the axial walls with built-in convergence when the bur is held parallel to the path of draw, and the rounded tip cuts a chamfer margin at the same time. It is also used for occlusal reduction and depth orientation grooves.
What size round end taper should I use for a crown prep?
Choose by margin depth. The deepest clean chamfer a round-tipped bur can cut is about half its diameter, so a 1.8 mm bur gives roughly a 0.9 mm heavy chamfer for molars and ceramics, while a 1.4 or 1.6 mm bur suits anteriors, premolars, and more conservative margins.
What is the difference between a round end taper and a tapered fissure bur?
Both cut tapered axial walls. The round end taper has a rounded tip that leaves a chamfer margin, while the tapered fissure has a flat tip that leaves a shoulder. Pick the round end taper for chamfer margins and the tapered fissure for shoulder margins.
What grit round end taper is best for crown prep?
Use coarse (green band) or medium (blue band) for reduction, then the same shape in fine (red band) to refine the margin. Many clinicians do most of the prep in medium and skip coarse on smaller teeth.
Why does my round end taper leave a lip at the margin?
Usually because the bur was sunk deeper than half its diameter. Past that point the tip undercuts instead of forming a chamfer, leaving thin unsupported enamel over the margin. Use a larger diameter for a deeper chamfer rather than pushing a smaller bur deeper.
Professional Use Only. Licensed Dental Professionals. General information only. Preparation dimensions vary by material, manufacturer, and case. Follow manufacturer instructions, your lab's prescription guidelines, and your clinical judgment.
