Needle Diamond Burs: What the Shape Is For and When to Reach for It
Some cuts need an edge. Some need a point.
When you are working between two teeth, a rounded head is often simply too wide to start. It touches the neighbor before it reaches the spot you meant to cut. The needle exists for exactly that moment: it tapers to a fine point that gets into spaces other shapes cannot enter.
Here is what the needle is for, the sizes and grits Taft carries, how it compares to a flame, and why its tip is the first thing to wear.
What a needle bur is
A needle diamond has a long head that tapers from the shank down to a fine point. Catalogs also call it a pointed cone or a thin taper, and shape codes vary between suppliers, so compare by profile and dimensions.
Two features do the work: the point, which starts a cut in a narrow space, and the length, which keeps the shank clear of the adjacent tooth while the tip works.
What it is used for
- Opening a contact. Starting the proximal cut in a crown prep, before a wider bur can fit.
- Interproximal separation where space is tight.
- Embrasure shaping and detail work in narrow areas.
- Refining contacts and fine interproximal detail, usually in fine grit.
The needle is a detail instrument. It is not built for bulk reduction, and it does its best work in short, controlled passes.

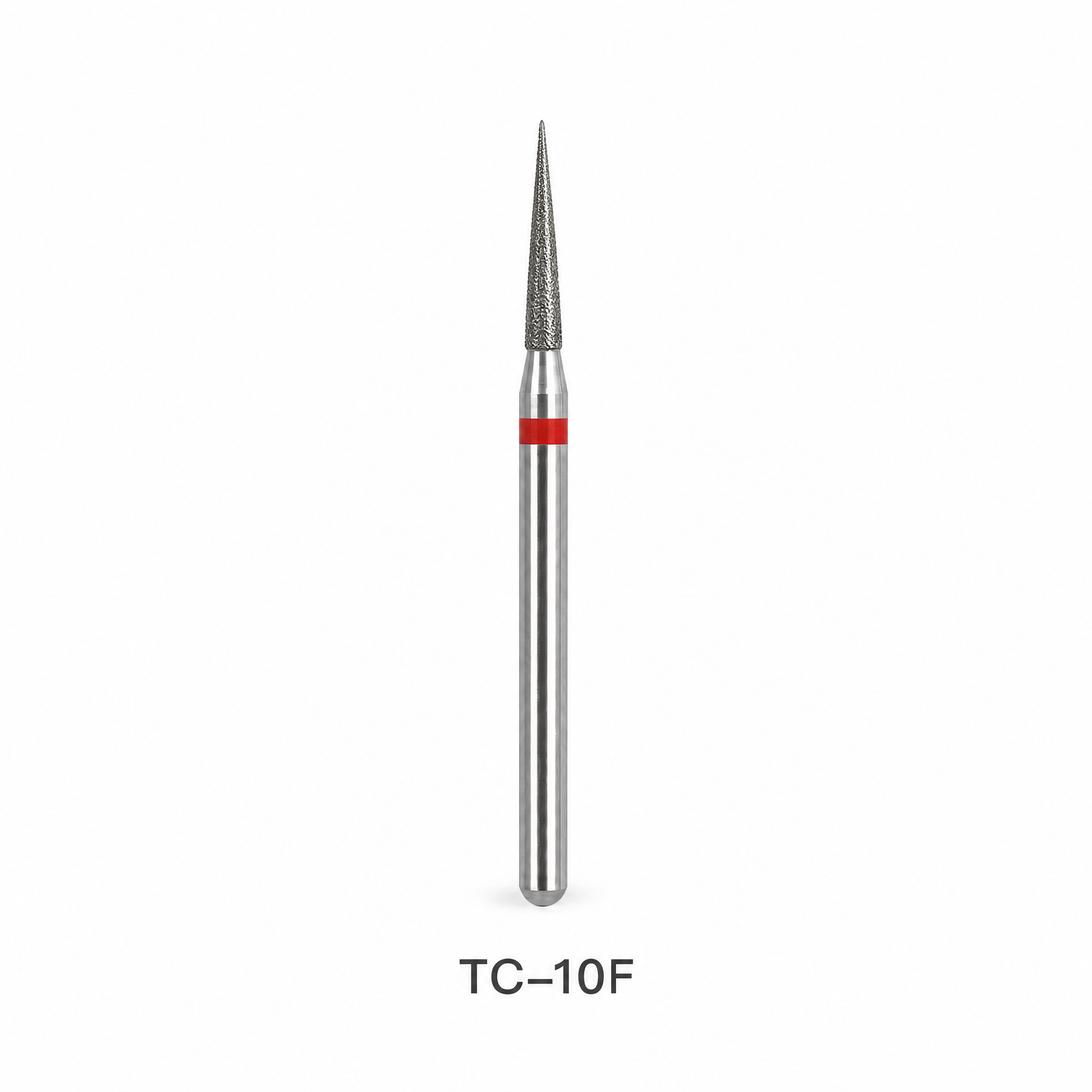

The Taft needle: sizes and grits
| Taft code | Head | Total length | Grit | Shank |
|---|---|---|---|---|
| TC-10 | 1.4 × 10.0 mm | 22.0 mm | Fine (red band) | FG |
| TC-11 | 1.6 × 10.0 mm | 22.0 mm | Medium (blue band) | FG |
TC-11 medium is the working choice for opening contacts and controlled reduction. TC-10 fine is the narrower, finer option for refining contacts and detail. Grit bands are explained in our grit color code guide.
The 10.0 mm head length is the practical feature: it keeps the shank clear of the neighboring tooth while the tip works interproximally.
Needle vs flame
Both are narrow, both get between teeth, and they are often confused. They are different tools.
| Needle | Flame | |
|---|---|---|
| Profile | Long, straight taper to a fine point | Shorter, flame-shaped head that swells then points |
| Taft size | 1.4 or 1.6 × 10.0 mm | 1.8 × 3.6 mm (FO-32) |
| Best for | Opening contacts, deep narrow access, embrasures | Interproximal work and veneer margins |
| Strength | Reach and a fine starting point | A shorter, more compact head for controlled shaping |
Many practices keep both. The flame and the needle cover different parts of the same problem.
Where it fits in a prep sequence
In a crown prep, the needle usually comes in at the proximal step: open the contact with the needle first, then bring the round end taper through once there is room. Starting with a narrow instrument is one of the simplest ways to protect the adjacent tooth.
The full sequence for anteriors and molars is in our crown prep bur sequence, and every shape by procedure is in which bur to use by procedure.
Why the tip goes first
A needle's value is its point, and the point is the smallest, most exposed part of the bur. It is where grit wears and rounds first. A needle with a rounded tip is no longer a needle. It is a thin taper that cannot start the cut it was bought for.
Check the tip under good light before each use. If it looks blunt, if it will not start a cut cleanly, or if you are pressing to get it going, retire it. The general signs of a worn diamond are in signs your dental bur is dull.
Taft needles are dual-layer bonded, which helps the point hold longer, but no diamond point lasts forever. Keep a spare in the block.
Get the needle
Taft needle diamond burs come in TC-10 fine and TC-11 medium, FG shank, $19.95 for a 5-pack. Direct to your practice with no rep and no minimums, with a 60-day guarantee that covers opened packs. Subscribe & Save on the product page keeps them on a schedule.
Pairs with: the round end taper for axial reduction and the football diamond for occlusal and lingual contours. Or get the sequence in one box with a crown prep kit. Questions: 513-580-8414.
Common questions
What is a needle bur used for?
A needle diamond bur is used for opening contacts, interproximal separation, embrasure shaping, and fine detail in narrow spaces. Its fine point starts a cut where wider shapes cannot fit, and its long head keeps the shank clear of the adjacent tooth.
What is the difference between a needle and a flame bur?
A needle is a long, straight taper to a fine point, suited to opening contacts and deep narrow access. A flame has a shorter head that swells then comes to a point, suited to interproximal shaping and veneer margins. Many practices stock both.
What grit needle bur should I use?
Medium grit (blue band) is the usual choice for opening contacts and controlled reduction. Fine grit (red band) is used for refining contacts and detail work.
What sizes does the Taft needle bur come in?
Two: TC-10 at 1.4 × 10.0 mm in fine grit, and TC-11 at 1.6 × 10.0 mm in medium grit, both with a 22.0 mm total length on an FG shank.
How do I know when a needle bur is worn out?
Check the tip. If it looks blunt or rounded, will not start a cut cleanly, or needs extra pressure to get going, replace it. The point is the first part of a needle to wear.
Professional Use Only. Licensed Dental Professionals. General information only. Follow manufacturer instructions and your clinical judgment.
